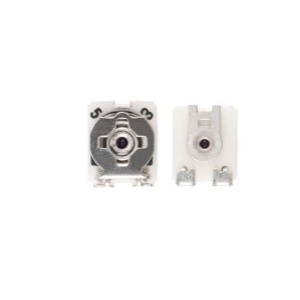

The adjustable resistor from the Weidong brand, part number VRHY3GSTB series, is a chip potentiometer and currently the smallest-sized potentiometer in China
The equipment can directly replace similar products from various imported brands worldwide in terms of product performance.
This series of potentiometers is widely used in:
1. Consumer products (such as remote controls, remote-controlled cars, washing machines, air conditioners, headphones, audio equipment, wearable devices, etc.),
II: Industrial control products (such as mixing consoles, controllers, power boards, display screens, power supplies, frequency converters, etc.)
Third: Communication/security products (such as intercoms, video doorbells, surveillance cameras, drones, industrial instruments and meters, radio frequency devices, etc.)
4. Other application areas include: medical devices, scanning IoT, BMS, automotive electronics, etc
After three years of research, development, and optimization, this adjustable resistor was launched in March 2023. After more than three years of market accumulation, it is currently
It has been maturely applied in multiple fields and has undergone feedback from the market and customers. So far, there has been no single case of malfunction. Currently, this product is a product of China
Yi Electronics' first direct sales, offering technical support and more. The following is a description of the key features of this product:
Ultra-fine size: 3.9*3.0*1.3mm, ultra-thin thickness of 1.3mm (thickness of 1.2mm can be customized)
Ceramic material, compliant with RoHS directive, with rotary stopper, reflow soldering, 2500 pieces/roll
Operating temperature range: -40℃~+100℃
Storage temperature range: -10℃~+40℃
Resistance range: 100Ω ~1MΩ
Allowable deviation of resistance ±25%
Rated voltage: Maximum operating voltage 50V
Rated power: 0.15W (~+70℃)
